| Overall Size | L2210*W1000*H660-960mm(to top of mattress) |
• High quality Steel, 11 process epoxy painting, anti-bacterial, paint thickness 0.12mm, brightness 60° from 45° angle, paint can resisit 50kg impact
• PP head and foot board are detachable.

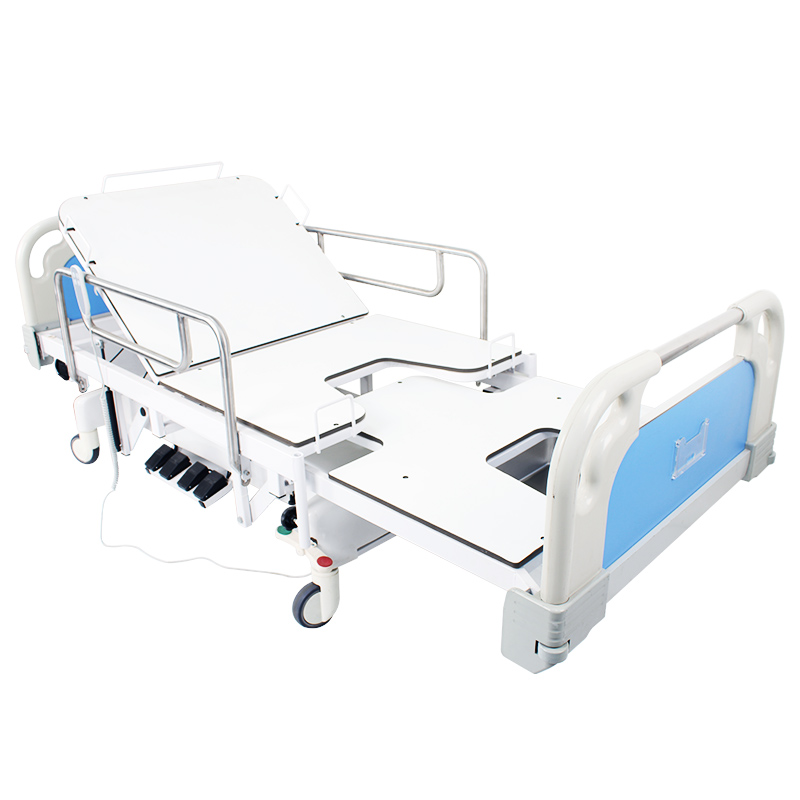

• 4 sections Bed Platfrom are made from Compact Laminate Board, Easy to clean.
• Solid bed base made of thickness 5.0mm rotating plate with thickness 1.5mm square tube.
• 360° full smooth welding.
• S/S Side Rails, Lifting to fold down and up.
• 5" castors with Central Lock/Steer for optimum stability and Mobility, durable and noiseless TPR tire, anti-winding hard shell, capable of converting quicky and easily from a standard bed to a versatile delivery platform.
• Bumper Wheels are detached to the head and foot board, reduce the impact of Collision.
• With one removable mattress, manually operated height and backrest adjustments.

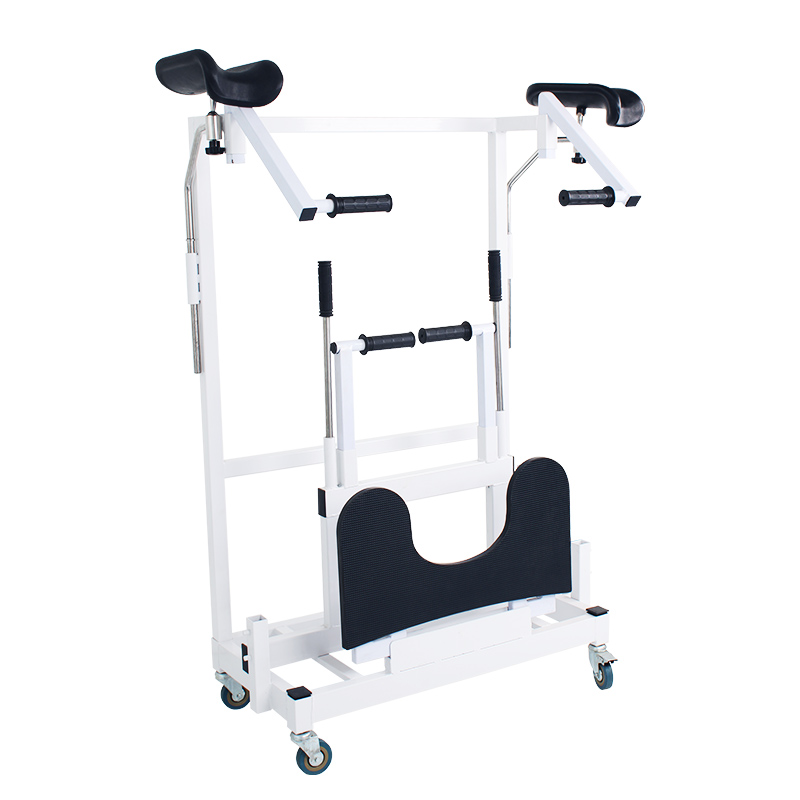

• Luxurious Mobile Auxiliary rack with castors: 1 pc, holding "L" Sharp foot support, "Z" Sharp foot Support, Grab handle,Legrest and Foot Stepper on it.
• "L" Sharp foot support: 2 pcs.
• "Z" Sharp foot Support: 2 pcs.
• Grab handle:2 pcs.
• Legrest: 2 pcs.
• Foot Stepper: 1 pc.
• Mattress: 2 pcs.
• Mattress Retainer: 5 pcs, The Mattress retainer will lock the the Larger Mattress in its place.
• Filth basin:1 pc, hiddened, could be slided into the bed.
• I.V Pole: 1pc, two IV pole sockets at the head end.
• Hand controller: 1 pc.
• Foot pedal controller: 2 set, at two sides, easy to for control.
| Backrest lifting angle | 0 ~ 75° (±5°) |
| Trendelenburg/Re-Trendelenburg | 0 ~ 12° |
| Bed Platform Height Range | 30 cm |
| Max Safe Load | 250kg |
| Power supply | 220V/110V, 50HZ/ 60Hz |
| Maximum input | 1.6A, 450VA |
ISO 9001, ISO 13485, CE, FDA
| G.W. | 112kg |
| N.W. | 105kg |
| Max Safe Load | 250kg |
| Max Dynamic Safe Load | 135kg |
• One set to one export Ctn
• Ctn Size: L160*W90*H70cm
• bed matress warranty for 1 years
• bed frame structure warranty for 2 years
